WLO-15800TM

Carrier Grade 4.9-6GHz TDMA MIMO Giga Ethernet Radio,W/ 2 x Ntype connectors, 25dBm, IP68 Rated Waterproof
Actual Long Distance and Giga Performance
Anti-Interference to guarantee the Link Performance
Frequency Range Customization is acceptable

Please refer the Test Report for 38KM PTP: https://www.dropbox.com/s/vxctrzly7jiyjb2/WLO-15800TM_TDMA%20MIMO_38Km%20Test%20Report_20170817.pdf?dl=0

PheeNet Super High Throughput Wireless Backhaul are adopting Wireless TDMA MIMO technology to provide an affordable and reliable connectivity.

All of products are high-performance outdoor-deployable wireless ethernet bridge radio that provides wireless connectivity between multiple network locations.

With the high throughput and long-distance transmission, it is the appropriate Wireless backhaul solution for WISP, Telecom Carriers, Service Providers and Enterprises.

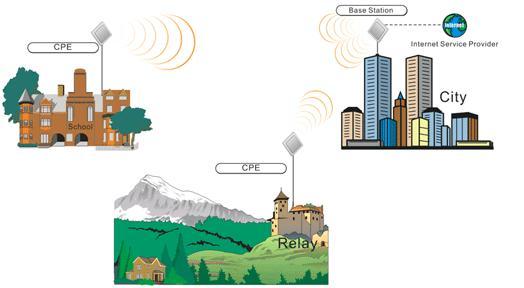

Application

Features

1. Anti-Interference to guarantee the Link Performance
2. Actual reachable range > 50km
3. Actual Giga Bandwidth
4. Support Bridge PTP, PTMP
5. High security (AES 128bit)
6. Ease of Installation (Real time Link Test for Local and Remote RSSI)
7. Transmit Power Control
8. Channel Bandwidth Control
9. Management VLAN
10. IP67 Rated Waterproof Metal Outdoor Enclosure with Vent Design

Specification

Wireless
Standard	Proprietary TDMA + MIMO
FrequencyBand	4910-6080MHz
Modulation	64QAM3/4,64QAM2/3, 16QAM3/4, 16QAM1/2, QPSK 3/4, QPSK1/2, BPSK3/4,BPSK1/2
DataRate	Adjustable rates range for transmission data rates for MIMO single stream mode and dual stream mode
ChannelBandwidth	5MHz, 10MHz, 20MHz, 40MHz
Security	AES 128bit
Sensitivity	-92dBm
OutputPower	25dBm
TransmitPower Control	5levels
OperatingMode	CPE Base Station
SoftwareFeatures	LinkTestTool (RealTime LocalandRemote RSSI)) SpanningTree(STP) Management VLAN NTPClient VPN Pass-Through (IPSec, PPTP, L2TP) Response Time <5ms
Management	Web-Basedmanagement Support command line over SSH Remotefirmwareupgradeable SupportSNMPV2c, V3(privateMIB,802.11 MIB) CLI Backup/Restore SystemLog RemoteLogServer for Event log HardwareWatchDog Show wireless network topology in geographic map Dual firmware images to automatic recover last firmware image in case power drop in FW upgrade
Hardware
Flash		16MB
SDRAM		64MB
LEDIndication		Power,Ethernet,Wireless,RSSI(5LEDs)
AntennaConnectors		2 x N type Female Connectors
Ethernet		10/100/1000BASE-TXauto-negotiationEthernetport x1(RJ-45connector) AutoMDI/MDI-Xenabled,IEEE802.3atPower Over EthernetCompatible
Environment		OperatingTemperature:-30°C ~80°C StorageTemperature:-30°C ~ 85°C Humidity:100%(noncondensing)
PowerSupply		802.3at POE (Injector enclosed)
Waterproof		IP68Certificated
Mounting		Wall Mount, PoleMount,Optional PoleMount forLight Pole
Dimensions		259 (L) x 250 (W) x 75 (H) mm

* Spec. could be changed without further notice
